Knocks FD.23 MAN Filter Regulator, 1/2" (Self Drain) 0.5-16 bar 40µm - British Pneumatics (Online Wholesale)
Knocks FD.23 MAN Filter Regulator, 1/2" (Self Drain) 0.5-16 bar 40µm - British Pneumatics (Online Wholesale)

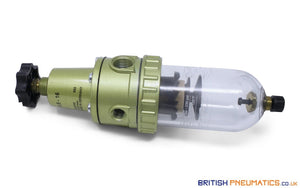

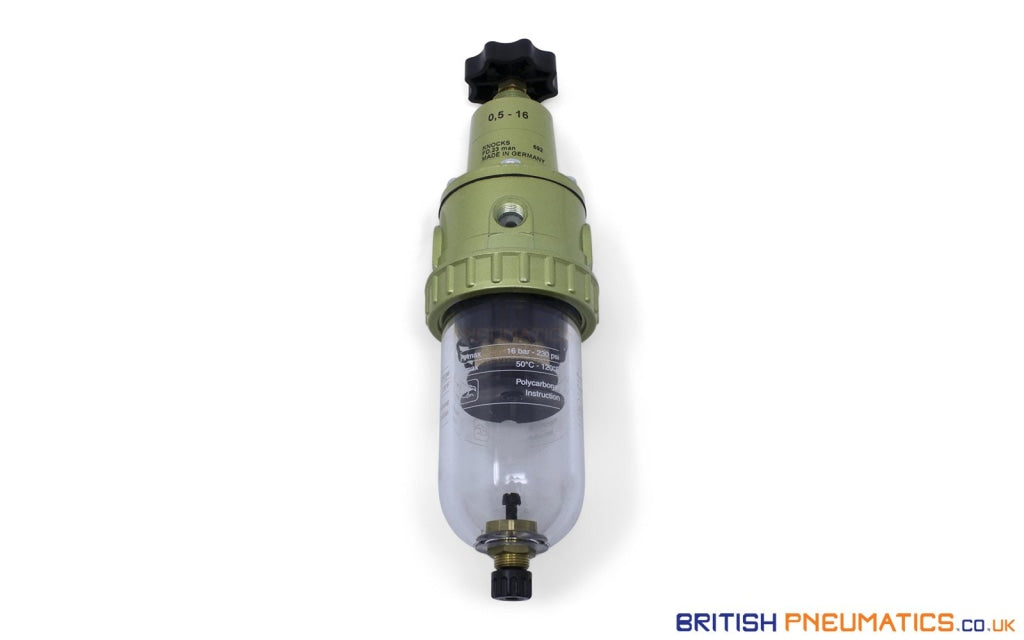

Knocks FD.23 MAN Filter Regulator, 1/2" (Self Drain) 0.5-16 bar 40µm

Regular price
£98.70
Sale price
£98.70
Free shipping within the UK! Worldwide shipping also available.

This is a precision KNOCKS FD.23 Filter Regulator for pneumatic systems. This excellent product from Knocks is Made in Germany and is suitable for all types of general industry use. G 1/2" port connections with manual drain.

Modulates between 0.5 - 16 bar accurately.


MPN 9.1923.00.660
G 1/2", Manual drain

Made in Germany.

Technical Specifications

Port size G 1/2
Description Air line regulator with diaphragm and relieving feature, centrifugal force principle with sintered filter
Mounting Vertically, drain plug at bottom
Supply pressure Pe max.16 bar
Pe max. 12 bar with auto drain
Pe min. 1,5 bar with auto drain
Reduced pressure Pa 0,5-10 bar standard.0,1-3 bar, 0,5-6 bar, 0,5-16 bar
Filter element 40 μm standard
Media and ambient temperature Max. 60℃
(oth. temperature ranges available upon request)
Bowl volume Max. 50 cm³ condensation volume
Drain model Manual drain standard, optional semi drain
Fixing Panel mounting, bracket
