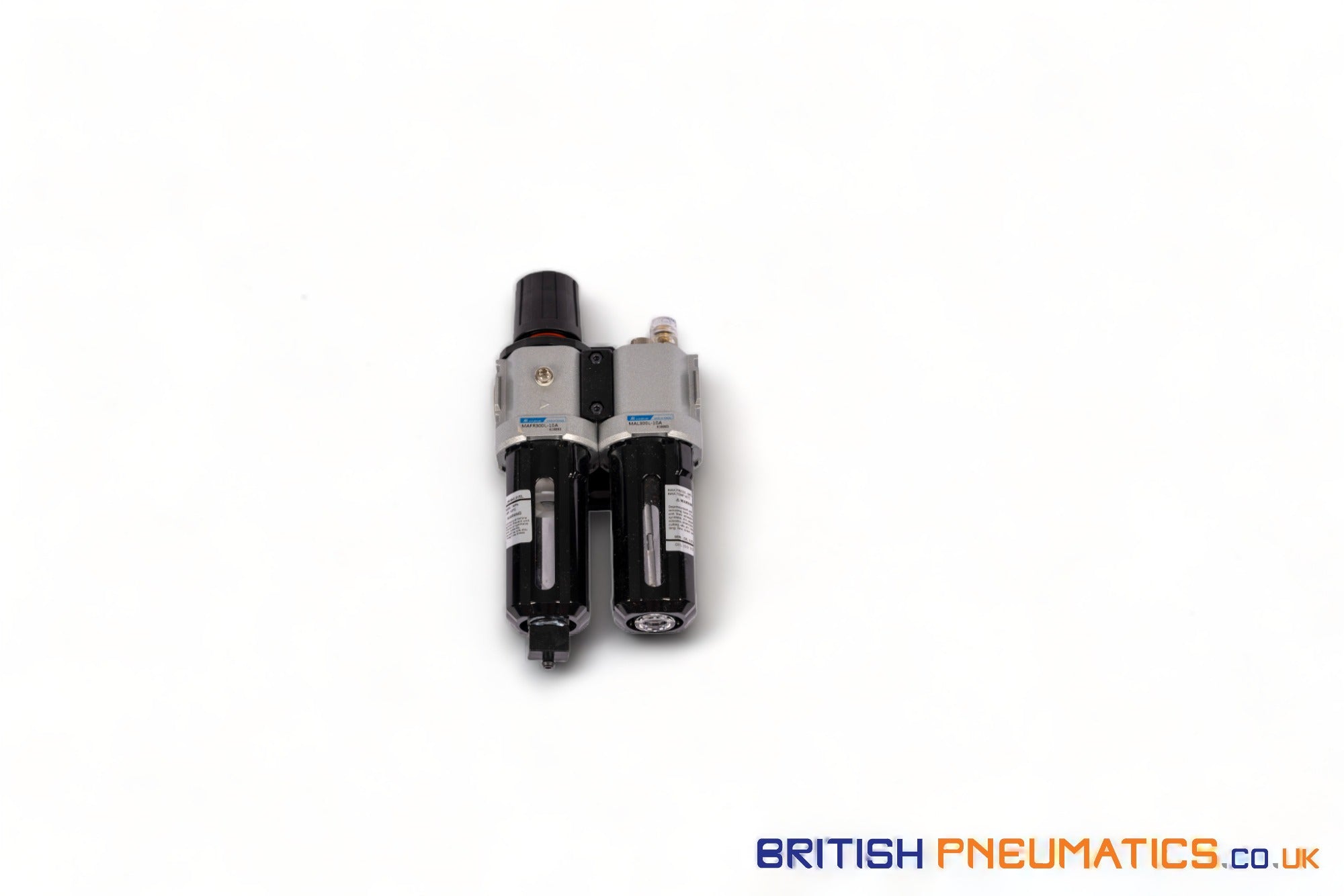

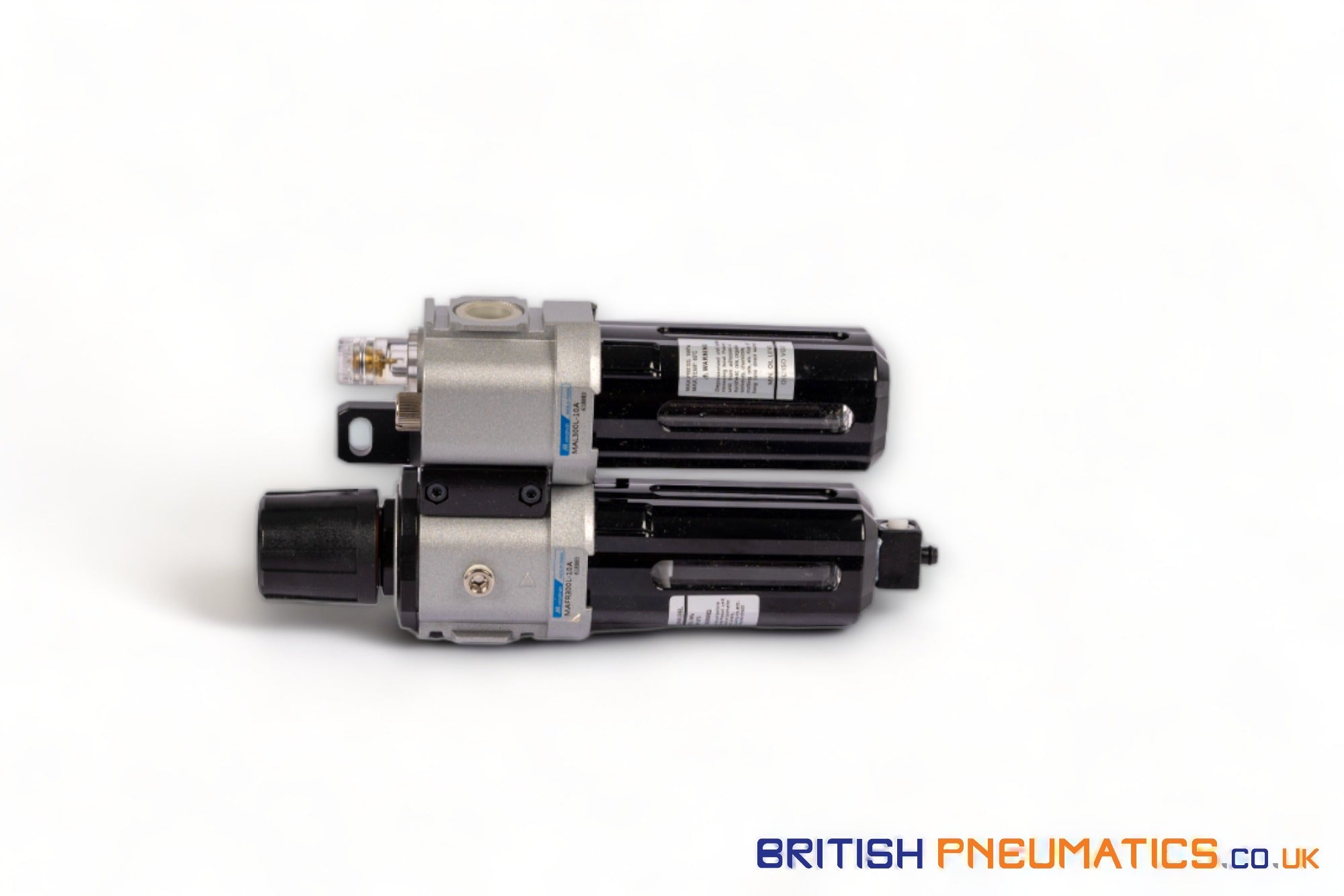

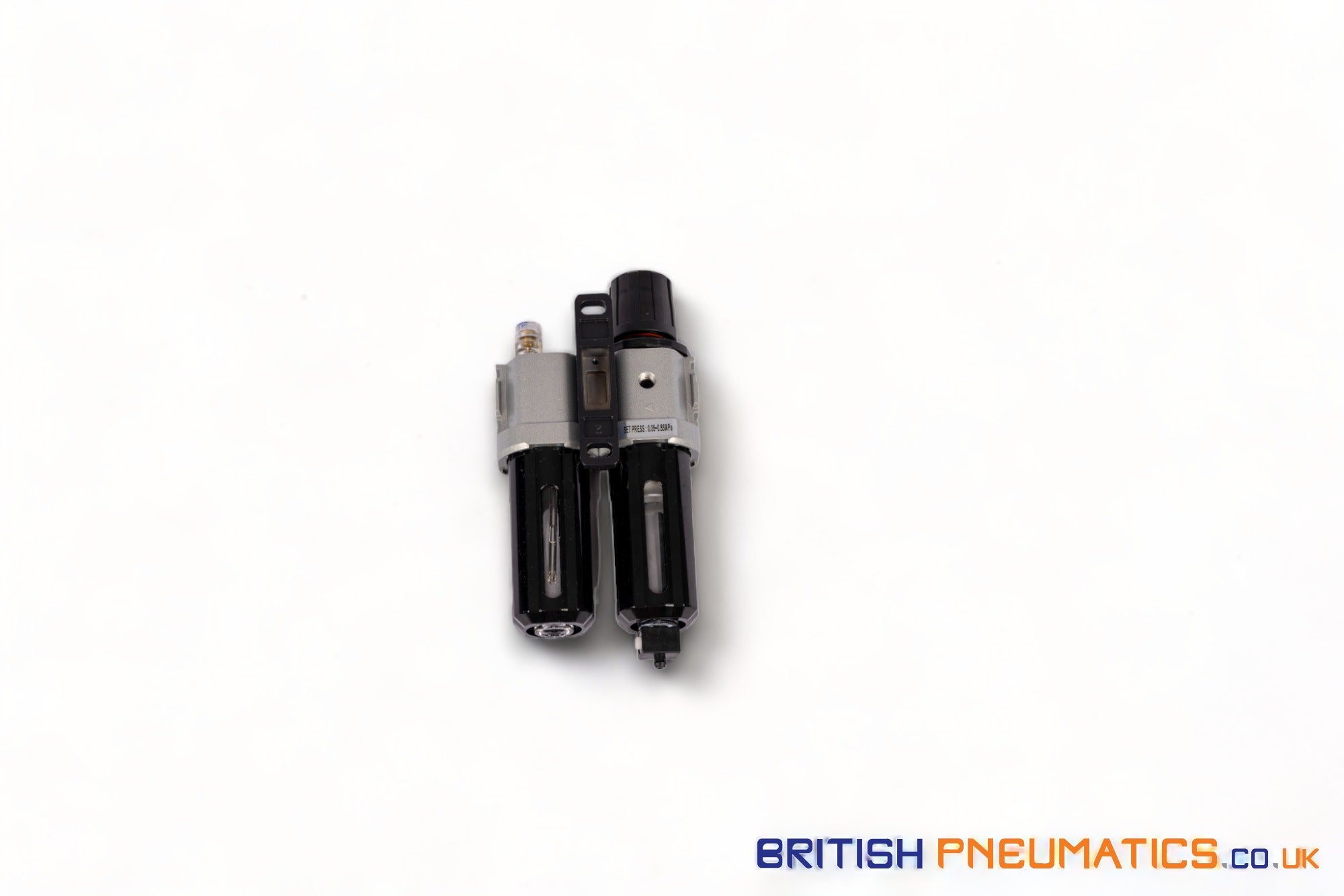

Mindman MACP300L-10A-D Filter, Regulator, Lubricator (FRL) 3/8"
MACP300L-10A-D, Auto Drain 3/8
AIR UNIT (F.R.L. UNIT)
MACP300L series
Technical Specifications
| Model | MACP300L |
| Bore no. | 8A /10A |
| Port size | 1/4 / 3/8 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | -5 ~ + 60℃ (No freezing) |
| Filter element | Standard: 5μm Option: 40μm |
| Lubricating oil capacity | 65 c.c |
| Min. flow for oil drip | 50l/min / 60l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |

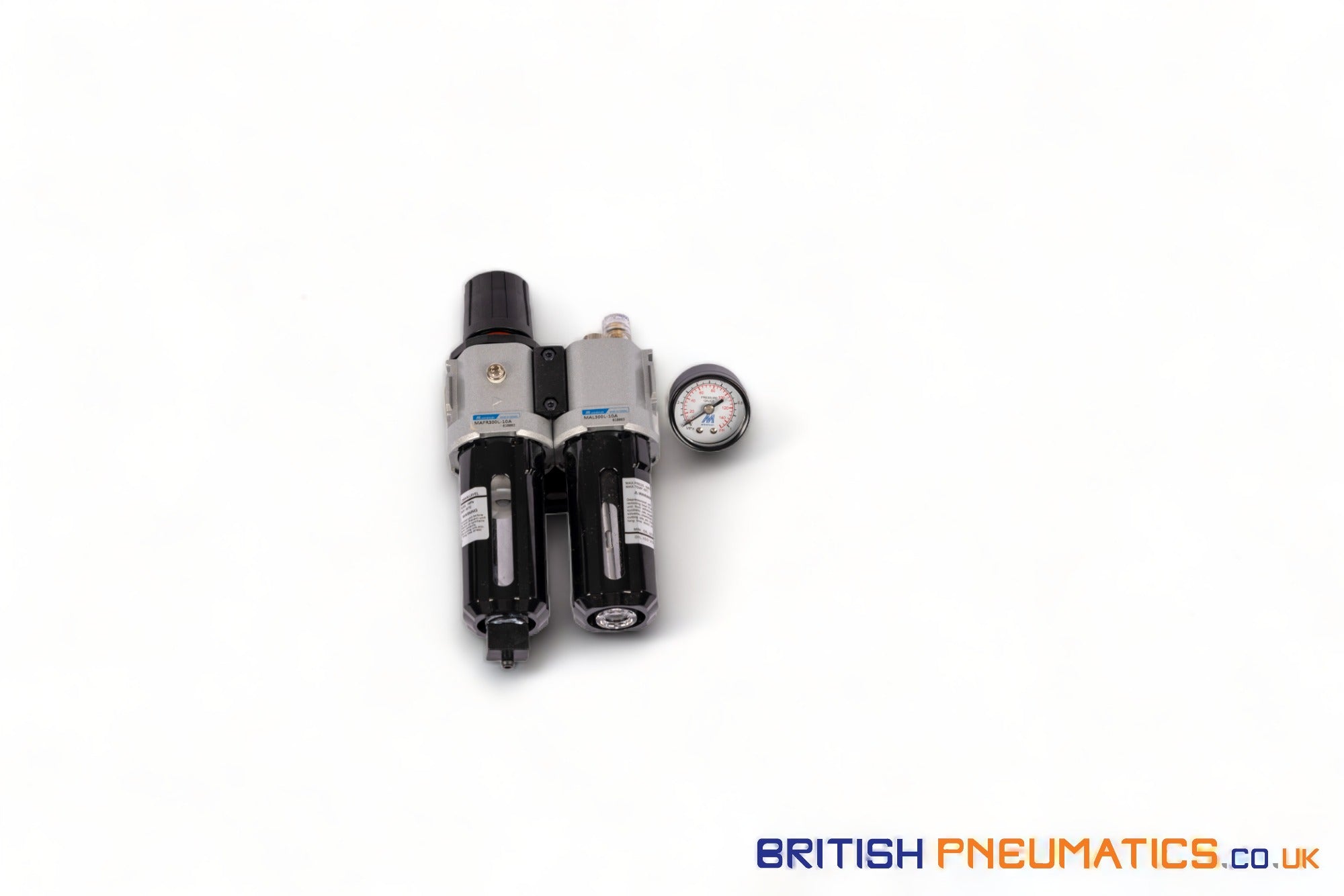

| Attachment | Pressure gauge (PG-40), T-type bracket |
